We provide

– Video Codec RTL IP Cores, including H.264/265, JpegXS, DSC & DisplayPort, etc.
– Codec Boards/FPGA Modules for hardware video systems
– ODM wireless video codec/transmission devices
– Design Service of Video/Audio/Wireless PCBA, modules,  devices and related firmware/software

Reference designs are available, running on off-the-shelf Jointwave FPGA based Codec Boards

For more information, please contact [email protected]

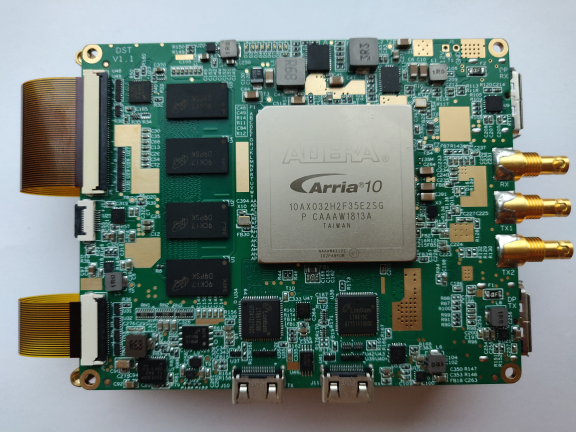

DST Industrial  Low Latency Codec Board



Key Features

• Support multiple Video Codecs, color space 4:2:0/ 4:2:2/4:4:4 optional
     H.264 — High compression rate, from 1:50 to 1:300
     DSC – Visual Lossless, compress rate 1:4
    JPEG-XS – Near Visual Lossless, compress rate up to 1:16
• Ultra Low Latency, Total Codec latency: minimal 1/8 frame for DSC and JPEG-XS, minimal 1/2 frame for H.264
• 4K60/50/30/25/24, 1080p60/50/30/25/24 resolution
• 12G SDI RX/TX, 4K60 DisplayPort RX/TX
• Compact size (80x100mm)
• Optional software stream player on Windows and Android
• Stream Interface 1: Giga Ethernet
• Stream Interface 2: SPI, data width 8bit, optional
• IEC 61000-4-2 Level 4 ESD Protection on 12G-SDI, DP, HDMI and FPC connectors
• Boot time less than 100ms
• Size is 80x100mm, with 4 M2.5 screw holes to install

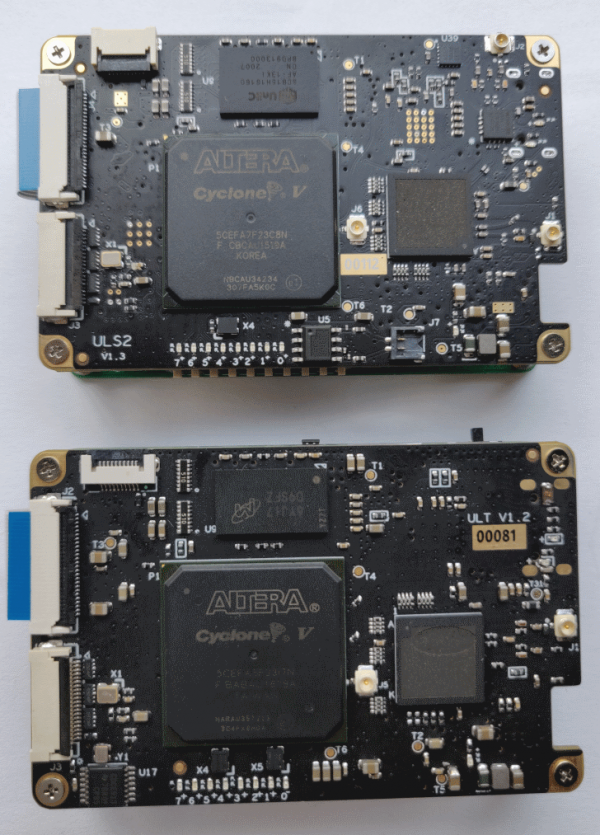

ULS ULT Industrial Low Latency Codec Board

Key Features
 • ULS is Encoder Board with 3G SDI RX (IPEX) and 1080p60 MiniHDMI RX interface
• ULT is Decoder Board with 3G SDI TX (IPEX) and 1080p60 MiniHDMI TX interface
• Support multiple Video Codecs, color space 4:2:0/ 4:2:2/4:4:4 optional
H.264 — High compression rate, from 1:50 to 1:300
DSC – Visual Lossless, compress rate 1:4
JPEG-XS – Near Visual Lossless, compress rate up to 1:16
• Resolution 1080p60/50/30/25, 1080i60/50, 720p60/50, 720×576, 720×480
• Color format: 4:2:0
• Bitrate of encoded stream: configurable, up to 32Mbps
• Automatically detect input put video and start encoding and decoding
• No user setting requirement for frame rate changing and format changing
• Codec latency:
Minimal configuration for H.264
25ms for 1920×[email protected]
12ms for 1920×[email protected]
Minimal configuration for JpegXS or DSC
4ms for 1920×[email protected]
2ms for 1920×[email protected]
• Boot time: Less than 100ms
• Compact size: 45x70mm





Contact us for specifications

Our H.264/265 video Codec IP cores stand out for their true H.264/265 compression efficiency and the optimized image quality they deliver. These cores encapsulate our longstanding expertise with H.264/265 and include state of the art technologies, such as deep sub-frame bitrate regulation and high-quality Ultra low latency Intra and Intra-Refresh Codec IP Cores.

A full range of easy-to-use, autonomous & widely configurable IP cores for Baseline, Main and High profiles H.264 encoding are available. These encoders offer support for 8, 10 and 12-bit per component color depth, in 4:2:0 and 4:2:2 and 4:4:4 chroma sampling.

They offer:

  • Scalable performance, supporting resolutions beyond Ultra-High Definition (UHD) and/or ultra-high frame rates.
  • Tiny silicon footprint, enabling economical low-power implementations in FPGAs and ASICs.
  • Excellent video quality, with ultra-low-latency of 2ms, and/or low-bit-rate video streaming.
  • 2/4/8 channel optional support to H.264/H.265 IP Cores.

– E2X0/D2X0 Series

H.264 Baseline I-Frame 4:2:0 8bit SD to UHD real time H.264 encoder/decoder IP Cores.

-E5X0/D5X0 Series

H.264 Baseline I+P Frame 4:2:0 8bit SD to UHD real time H.264 encoder/decoder IP Cores.

– E6X0/D6X0Series

H.264 Main profile I+P Frame 4:2:0 8bit SD to UHD real time H.264 encoder/decoder IP Cores.

– E7X0/D7X0 Series

H.264 High profile I+P Frame 4:2:2/4:2:0 8bit or 4:0:0 8bit/10bit/12bit/14bit SD to UHD real time H.264 encoder/decoder IP Cores.

– E8X0/D8X0 Series

H.264 High profile I+P Frame 4:4:4/4:2:2 8bit/10bit/12bit/14bit SD to UHD real time H.264 encoder/decoder IP Cores.

– E9X0/D9X0 Series (WDE9X0)

WDE / WiGig H.264 Codec IP Core SD to UHD real time H.264 encoder/decoder IP Cores.

– HE7X0/HD7X0 Series

HEVC/H.265 high profile I+P Frame 4:2:2/4:2:0 8bit/10bit SD to UHD real time H.2645 encoder/decoder IP Cores.

Jointwave X16 JPEG-XS Codec IP Core

  • KEY FEATURES

    • Visual Lossless
    • Fully compatible with ISO/IEC 21122-1
    • 4K60 to 8K60 real time Codec on middle-end FPGA

               Arria10, Kintex US/US+, Zynq, etc

    • 1080p60 to 4K60 real time Codec on low-end FPGA

              Cyclone10, CycloneV, Artix7, Kintex, Zynq, etc

    • Configurable compression ratio, from 1:4 to 1:32
    • Very small area, only 24K LE for 4K60 encoder or decoder on middle-end FPGA

    150K gate for 4K60 encoder or decoder on ASIC

    • Support max size 16K or even bigger video source
    • Color Spaces Optional: 4:2:2 / 4:4:4
    • Color Depth Optional: 8 / 10 /12 / 16 bits
    • Ultra low Codec latency, total latency (encoder + ethernet + decoder + display):

         Lowest latency configuration is less than 1/8 frame ( < 2ms for 60fps)

    • Comprise of Encoder and Decoder:

         Encoder – X16E

         Decoder – X16D

  • COMPETITIVE ADVANTAGES

    Excellent video quality

    – Very low silicon resource on both ASIC and FPGA

    – Ultra low power consumption on both ASIC and FPGA

    – Ultra Low latency

    – Encoder integrated with optional camera interface

    – Decoder integrated with optional display module

    4K60 Live Demo on Jointwave DST board based on Arria10

    1080p60 and 4K30 Live Demo on Jointwave ULS + ULT board based on CycloneV



Jointwave D4 DSC Codec IP Core

KEY FEATURES

  • Visual Lossless
  • Fully compatible with VESA DSC Standard 1.2a
  • 4K60 to 8K60 real time Codec on middle-end FPGA

                   Arria10, Kintex US/US+, Zynq, etc

  • 1080p60 to 4K30 real time Codec on low-end FPGA

                 Cyclone10, CycloneV, Artix7, Kintex, Zynq, etc

  • Configurable compression ratio, from 1:2 to 1:4
  • Small area, only

                    52K LE for 4K60 encoder or decoder on middle-end FPGA

                   200K LE for 8K60 encoder or decoder on middle-end FPGA

                   200K gates for 4K60 encoder or decoder on ASIC

                  800K gates for 8K60 encoder or decoder on ASIC

  • Color Spaces Optional: 4:2:2 / 4:4:4
  • Color Depth Optional: 8 / 10 /12 / 16 bits
  • Comprise of Encoder and Decoder:

            Encoder – D4Z

            Decoder – D4X

COMPETITIVE ADVANTAGES

Excellent video quality

– Very low silicon resource on both ASIC and FPGA

– Ultra low power consumption on both ASIC and FPGA

– Zero latency

4K60 Live Demo on Jointwave DST board based on Arria10

1080p60 and 4K30 Live Demo on Jointwave ULS + ULT board based on CycloneV
